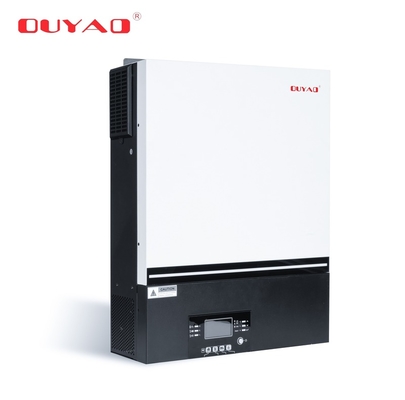

Name: 7.2KW Ouyad Max 48V 230V Off Grid Porcelain Inverter Solar Hybrid Work Without Battery With MPPT Charger 147.4 x 432.5 x 553.6mm
Brand: 7.2KW Ouyad Max 48V 230V Off Grid Porcelain Inverter Solar Hybrid Work Without Battery With MPPT Charger 147.4 x 432.5 x 553.6mm
SKU: Max7200
Price: 755.00 USD
Availability: InStock
Rating: 5 (138 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: Max7200

Input Voltage: 230VAC

Output Voltage: 230VACÂ±5%

Output Current: 80A

Output Frequency: 50Hz/ 60Hz

Output Type: Single

Size: 147.4 X 432.5 X 553.6mm

Type: DC/AC Inverters

Inverter Efficiency: 90%-93%

Certificate: CE,IEC

Warranty: 1 Years

Weight: 18.4kg

Battery Voltage: 48VDC

Output Waveform: Pure Sine Wave

Controller Type: MPPT

MPPT Range: 90~450VDC

Parallel Capacity: Yes,6 Units

Max PV Array Power: 8000w(4000w*2)

Lead Time: 7 Days For Sample; 25 Days For Bulk Order.

Basic Infomation

Certification: CE,IEC

Model Number: Max7200

Payment & Shipping Terms

Packaging Details: carton

Product Description

Products Description

Max Series

Main Features

1. Customizable status LED bar with RGB lights 2. Built-in WiFi for mobile monitoring (Android/iOS App are available) Support USB on the go function 3. Reserved communication port for BMS (RS485, CAN-BUS or RS232) Replaceable fan design for ease of maintenance 4. Battery independent design 5. Configurable AC/PV output usage timer and prioritization Selectable high power charging current 6. Selectable input voltage range for home appliance and personal computers Compatible to Utility Mains or generator input 7. Built-in anti-dust kit 8. Optional DC output for DC fan, LED bulb, router and so on Parallel operation up to 6 units only available for 7.2kVA

Model			Max 3600	Max 7200	Max 8000	Max 6500
RATED POWER			3600VA/3600W	7200VA/7200W	8000VA/8000W	6500VA/6500W
Parallel Capacity			No	Yes, 6 units
Input	Voltage	230VAC					120 VAC
		Selectable Voltage Range	170-280VAC (for personal computers) 90-280VAC (for home appliances)					90-140 VAC (For Personal Computers) 80-140 VAC (For Home Appliances)
		Frequency Range	50Hz/60Hz (auto sensing)
Output	AC Voltage Regulation (Batt.mode)	230VAC±5%					120VAC±5%
		Surge Power (5 seconds）	7500VA	15000VA	15000VA	15000VA
		Efficiency (peak)	90% - 93%
		Transfer Time	10ms(for personal computers); 20ms (for home appliances)
		Waveform	pure sine wave
Battery& AC charger	Battery Voltage	24VDC	48VDC	48VDC	48VDC
		Floating Charge Voltage	27VDC	54VDC	54VDC	54VDC
		Overcharge Protection	33VDC	66VDC	66VDC	66VDC
		Max. AC Charge Current	80A	80A	80A	120A
		MAX PV Array Power	4000W	8000W(4000W*2)	8000W(4000W*2)	8000W(4000W*2)
		MPPT Range@ Operating Voltage	120~450VDC	90~450VDC	90~450VDC	90~230VDC
		Maximum PV Array Open Circuit Voltage	500VDC	500VDC	500VDC	250VDC
		Max. Solar Charge Current	80A	80A	80A	120A
		Max. Charge Current	80A	80A	80A	120A
Physical	Dimension, DWH(mm)	147.4 x 432.5 x 553.6
		Net Weight (kgs)	14.1KG	18.4KG	18.4KG	18.4KG
		Communication Interface	USB/RS232/RS485/WiFi/Dry-contact
Operating Environment	Humidity	5%-95% relative humidity ( non-condensing)
		Operating Temperature	-10℃ -50℃					-10° C to 40°C
		Storage Temperature	-15° C to 60°C

Hot Sale

Q1.Which payment method do you accept? We accept T/T,LC,D/P D/A,MoneyGram,Credt Card. PayPal,Western Union,Cash,Escrow.

Q2.Can I get a sample?

Please send me the product link and I will reply as soon as possible.

Q3.What is your shipping methods? We use UPS, DHL, FedEx, EMS, TNT or the shipping agent as your request.

Q4.what is the discount ? Please tell me the goods and quantity you want, and Iwill give you a more accurate quotation as soon as possible.

Q5.how long is your production cycle ? The production cydle for each product is different. If you need further clarfication, send me the product link, and I will reply as soon as possble.

Q6.where is your factory located ? You can find relevant information on the home page of the store or the company profile. You can also tel me the exact question and I will reply to you as soon as possible

Q7.how is the quality ? You can find relevant information on the home page of the store or the company profle. You can also tel me the exact question and I will reply to you as soon as possible.

Q8.How about the Warranty? One year (Note: If have quality problem without man made reason within warranty, we can supply spare part but customer need to pay the freight charge).

Q9.How long will it take to ship to my address? For international shipping, it depends on the product quantity and delivery address. For a specific estimate, please provide those details so that Ican quote the most cost-effective option.

Q10.Can I customize products? Yes. Let me know the specfc customization requirements, andI will get back to you as soon as possible.
