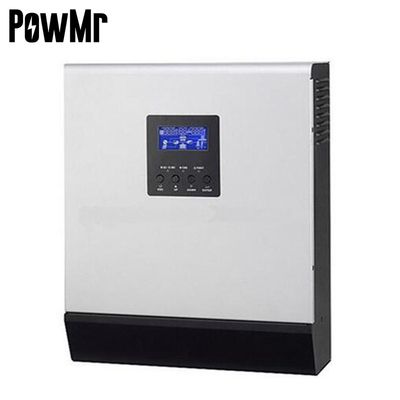

Name: Free shipping! ! ! PowMr 5KVA 4KW 48V 220V PWM 50A 6 Charger Support Unit 4000W Parallel Pure Sine Wave Solar Hybrid Inverter 120*295*468mm
Brand: Free shipping! ! ! PowMr 5KVA 4KW 48V 220V PWM 50A 6 Charger Support Unit 4000W Parallel Pure Sine Wave Solar Hybrid Inverter 120*295*468mm
SKU: PS-5K-parallel
Price: 1 USD
Availability: InStock
Rating: 5 (199 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Model Number: PS-5K-parallel

Input Voltage: 48V

Output Voltage: 220V

Output Current: 50A

Output Frequency: 50/60HZ

Output Type: Single

Size: 120*295*468mm

Type: DC/AC Inverters

Inverter Efficiency: >95%

Certificate: CE

Warranty: 2 Years

Weight: 9.8kg

Product Name: MPPT Solar Inversor

Battery Type: Flooded Batteries, Gel Batteries, Lead-acid Batteries, User Mode

Max Panel Input Volt: 100V-150V

Phase: Single Phase, Parallel Single For Three Phase

Inverter Type: High Frequency Inverters

Parallel Capality: Yes, Up To 6 Units

Wifi/BLE Tooth Module: No Wifi/BLE Tooth Module

PV Charging Current: 50amps

AC Charging Current: 60 Amps

AC+PV Charging Current: 110Amps

Basic Infomation

Certification: CE

Model Number: PS-5K-parallel

Payment & Shipping Terms

Product Description

Note: The product PS-5K-parallel is shipped from Germany warehouse!!

Product Description

Overview:
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

Features:
(1）Pure sine wave inverter
(2）Configurable input voltage range for home appliances and personal computers via LCD setting
(3）Configurable battery charging current based on applications via LCD setting
(4）Configurable AC/Solar Charger priority via LCD setting
(5）Compatible to mains voltage or generator power
(6）Auto restart while AC is recovering
(7）Overload/ Over temperature/ short circuit protection
(8）Smart battery charger design for optimized battery performance
(9）Cold start function

Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.

Details Images

Model Name	PS-3KVA	PS-5KVA
Rated Power	3000VA/2400W	5000VA/4000W
Input
Voltage	230VAC
Selectable Voltage Range	170V~280VAC(For Personal Computers);90~280VAC(For Home Appliances)
Frequency Range	50 Hz/60 Hz(Auto detection）
Output
AC Voltage Regulation (Batt.Mode)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency(Peak)	95%
Transfer Time	10ms (For Personal Computers) 20ms(For Home Applicances)
Waveform	Pure Sine Wave
Battery&AC Charger
Battery Voltage	24VDC	48VDC
Float Charging Voltage	27VDC	54VDC
Overcharge Protection	30VDC	60VDC
Maximum AC Charge Current	30A	60A
Solar Charger
Charge Current	50A
Charge Mode	PWM
Maximum PV Array Open Circuit Voltage/Power	80Vdc / 1200W	105Vdc / 2400W
Operating Voltage Range	30~32Vdc	60~72Vdc
Standby Power Consumption	2W
Physical
Dimension (DWH),mm	100x272x355	120x295x468
Net Weight	8.0	10.5

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2014, sell to North America(20.00%), Africa(15.00%), Southeast Asia(15.00%), Western Europe(15.00%), South America(15.00%), Domestic Market(10.00%), Mid East(5.00%), Eastern Europe(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Solar Charger Controller, Solar Inverter, Solar Water Pump, Solar Connector

4. Why should you buy from us not from other suppliers?
Our company has been engaged in solar charge controller field 8 years, we had very good cooperation with many large famous manufacturers during this period. We also have our own Temank, PowMr, Y-SOLAR trademark.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR, CIF, EXW, CIP, DDP, Express Delivery；
Accepted Payment Currency: USD, EUR, HKD, CNY;
Accepted Payment Type: T/T, L/C, Credit Card, PayPal, Western Union, Cash;
Language Spoken: English, Chinese, Japanese, German
