Honest marketing
1. 100% full power of the product.
2. Six intelligent protection functions to protect your safety.
3. The enterprise has passed ISO9001, RoHS and other certification.
4. The products have passed CE, FCC and other certification.
5. The product has obtained more than 20 patents.
6. Source enterprises, direct sales of manufacturers.
The engineering and technical team will tailor your exclusive products for you.

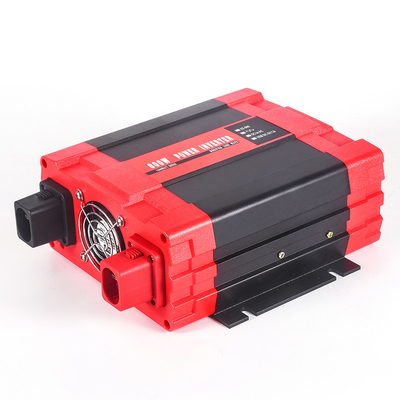

Dc To Ac Power Inverter 300W-3000W, LED/LCD digital display, 2times peak power,high frequency type with transformer. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.
| Model | XZ-800A | ||
| Input | DC voltage | 12VDC | 24VDC |
| Voltage range | 9.5-15.5VDC | 19.5-31.5VDC | |
| No load current draw | 0.5A | 0.2A | |
| Efficiency | 90% | ||
| Output | AC voltage | 100/110/120VAC or 220/230/240 VAC | |
| Continuous power | 800W | ||
| Surge power | 1600W | ||
| Waveform | Modified sine wave | ||
| Frequency | 50Hz or 60Hz | ||
| USB Output | 5VDC 1A | ||
| Protection | Low voltage alarm | 10.5±0.5VDC | 21.5±0.5VDC |
| Low voltage shut down | 9.5±0.5VDC | 19.5±0.5VDC | |
| Over voltage shut down | 15.5±1VDC | 31.5±0.5VDC | |
| Short circuit | Shut off output automatically | ||
| Over load | Shut off output automatically | ||
| Over thermal | Shut off output automatically | ||
| Environment | Working temperature | -10℃ and +50℃. | |
| Working humidity | 20%~90%RH | ||
| Storage temperature | -30℃ ~ +70℃ | ||
| Package | Machine size(L*W*H)mm | 214*188.7*80.8 | |
| Net weight KG | 1.4 | ||
| Gross weight KG | 1.9 | ||
| Packing size mm | 280*230*125 | ||
| Package quantity pcs | 8 | ||
| Outer packing size mm | 580*300*480 | ||
| Total weight KG | 15.4 | ||
Q:Are you a inverter directly factory or inverter trading company?
A:We are inverter manufacturer.
Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.
Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!
Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.
Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.
Q:Do you accept customized order?
A:Yes, we do.
Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
