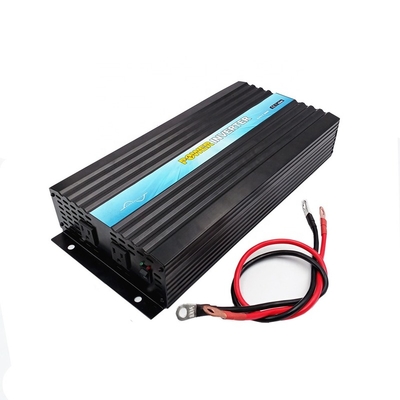

Power Inverter, MLP-2000W
This power inverter instantly converts low voltage DC power to high voltage AC power with the advanced double CPU SCM intelligent controlling technology.
With innovative design and super efficiency, power inverter is low noise but high efficiency. Power inverter is widely applied for power tools, home appliances, office equipments, portable equipments and etc. You can use power inverter in many places, such as cars, trucks, trailers, boats, laptops, camcorders, cell phones and so on.
Customize input voltage such as 36V, 72V, 96V, 110V etc; output voltage such as 120v, 130v, 200V etc; Many kinds of sockets are available.
Features of power inverter:
1. Output waveform: pure sine wave
2. 12v/24v/48v DC input
3. 100v-120v/220v-240v AC output
4. Output frequency: 60Hz/50Hz
5. Rated power: 2000w
6. Peak power: 4000w
7. Work efficiency: 85%-95%
8. LED indication
9. Full power and soft start
10. High transform efficiency, fast start
11. Strong adaptability and stability
12. Safe and reliable with built-in fuse
13. Temperature controlled fan, safe & efficient
14. Low voltage protection
15. Over voltage protection
16. Over load protection
17. Short circuit protection
18. Input reverse connection protection
19. Over temperature protection
20. CE &ROHS &SGS &GMC &IP30 approved
21. Factory direct selling
22. 1 year warranty
Applications:
1. Office equipment series: Computers, Printers, Copiers, Scanners, digital camera and etc;
2. Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans and etc;
3. Kitchen utensils series: Microwave ovens, Refrigerators, Freezers, Coffee machines, Blenders, Oven, induction cooker and etc;
4. Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment and etc;
5. In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights and etc;
6. Industry equipments series: Solar energy, wind power, gas discharge lamp and etc;
7. Power tool series: Electric saw, drilling machine, punching machines, air compressor and etc.
Basic technical data:
| Model | P2000-12-110 | P2000-24-110 | P2000-48-110 | P2000-12-220 | P2000-24-220 | P2000-48-220 |
| Rated Power | 2000W | 2000W | 2000W | 2000W | 2000W | 2000W |
| Peak Power | 4000W(within 5 millisecond) | |||||
| DC Input Voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| AC Output Voltage | 110VAC±10% | 220VAC±5% | ||||
| No-load Current | < 1.7A(DC13V) | < 1.05A(DC26V) | < 0.85A(DC52V) | < 1.7A(DC13V) | < 1.05A(DC26V) | < 0.85A(DC52V) |
| AC Output Frequency | 50HZ±1%/60HZ±1% | |||||
| AC Output Waveform | Pure sine wave | |||||
| Waveform Distortion | THD<3% | |||||
| Full Load Efficiency | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) |
| DC Input Voltage Range | 10.6V-15.5V | 21.6V-30V | 43.2V-63V | 10.6V-15.5V | 21.6V-30V | 43.2V-63V |
| Low Voltage Alarm | 10.5±0.3V | 21±0.6V | 41.8±1.2V | 10.5±0.3V | 21±0.6V | 41.8±1.2V |
| Low Voltage Protection | 9.5±0.2V | 19±0.3V | 38±0.4V | 9.5±0.2V | 19±0.3V | 38±0.4V |
| Over Voltage Protection | 16±0.5V | 31±1V | 65±2V | 16±0.5V | 31±1V | 65±2V |
| Low Voltage Recovery | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V |
| Over Voltage Recovery | 15.7±0.3V | 31.8±0.4V | 63±1V | 15.7±0.3V | 31.8±0.4V | 63±1V |
| Over-load Protection | 120%-125% | |||||
| Protective Function | Low voltage: LED red light turn on,buzzer warning, automatic recovery | |||||
| Over voltage: LED red light turn on ,automatic recovery | ||||||
| Over-load: LED red light on,machine locked, need to be rebooted | ||||||
| Over temperature: LED red light turn on,buzzer warning, automatic recovery | ||||||
| Short circuit(within 2 seconds): automatic recovery | ||||||
| Input reverse connection: Fuse burn-out | ||||||
| Work Temperature | –10°C - +50°C | |||||
| Storage Temperature | –30°C - +70°C | |||||
| Humidity | 20%-90%RH without condensation | |||||
| Work Altitude | ≤1200m | |||||
| Size | 448*199*78mm/pc | |||||
| Net Weight | 5.66±0.05kg/pc | 5.54±0.03kg/pc | 5.46±0.03kg/pc | 5.66±0.05kg/pc | 5.54±0.03kg/pc | 5.46±0.03kg/pc |
| Package Size | 520*260*165mm/pc; 520*260*305mm/2pcs | |||||
| Gross Weight | 7.16±0.05kg/pc | 6.88±0.05kg/pc | 6.8±0.05kg/pc | 7.16±0.05kg/pc | 6.88±0.05kg/pc | 6.8±0.05kg/pc |
| 13.86±0.1kg/2pcs | 13.4±0.05kg/2pcs | 13.2±0.05kg/2pcs | 13.86±0.1kg/2pcs | 13.4±0.05kg/2pcs | 13.2±0.05kg/2pcs | |
